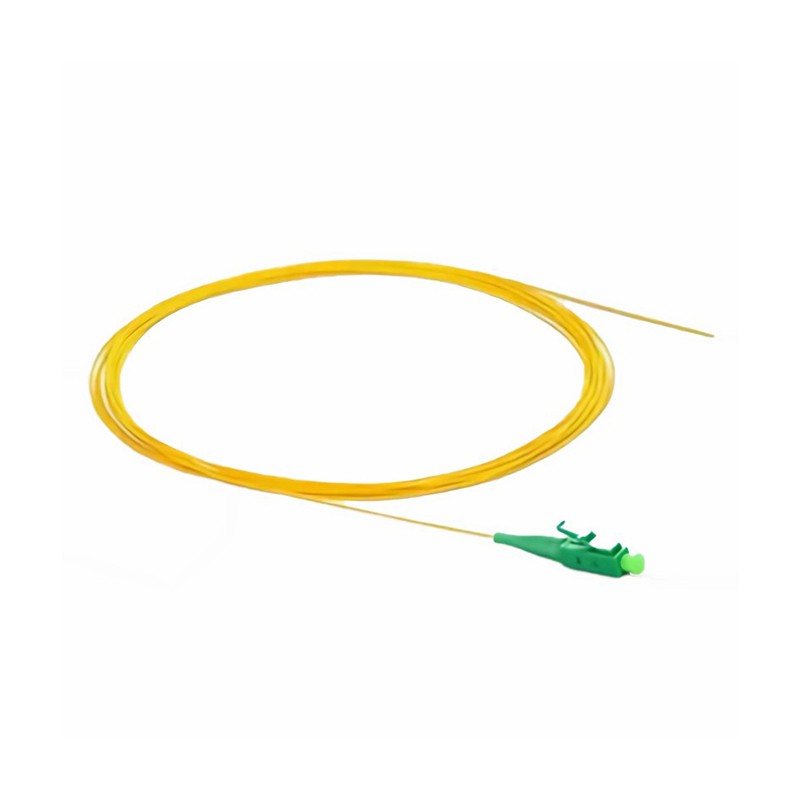

LC pigtail
Patch qaum pigtail yog nyob rau hauv ib qho ntawm fiber ntau optic cable ntxiv rau fiber ntau optic connector, qhov kawg ntawm lub xeev qub, kom ua tiav cov khoom siv kho qhov muag thiab cov khoom siv, cov khoom siv thiab fiber optic cable kev ua ub no ntawm kev sib txuas, yooj yim rau kev khiav lag luam, yooj yim, yog ib qho tseem ceeb passive khoom ntawm optical network siv cov khoom siv thiab fiber optic cable ntawm cov dej num ntawm kev sib txuas, kev ua haujlwm yog yooj yim, yooj yim thiab ceev, yog ib qho ntawm cov khoom passive tseem ceeb rau kev tsim kho qhov muag network. LC pigtails yog qhov zoo tagnrho rau kev txhawb nqa fiber ntau cov ntawv thov hauv kev sib txuas lus ceev ceev. Tsim thiab sim ua kom tau raws li ICE, ISO, thiab ROHS cov qauv kev lag luam, HTGD muaj nyob rau hauv OM1, OM2, OM3, OM4, OM5, OS1 thiab OS2 fiber ntau hom, nrog LC connectors, thiab nyob rau hauv ntau yam cable diameters thiab cov ntaub ntawv. Lub plug-in tsim ntawm LC connectors faib lub taub hau kev twb kev txuas rau hauv 1.25mm, ua rau nws kuj me me thiab haum rau high-density fiber optic kev twb kev txuas.
Daim ntawv thov:
Optical fiber ntau transceiver
Txuas cov khoom siv hauv chaw nres tsheb
Fiber optic kev sib txuas lus system, kev kub ceev thiab muaj peev xwm fiber ntau kis tau tus mob
Fiber optic sensors, active khoom debugging thiab kuaj, thiab lwm yam fiber optic kev twb kev txuas
Nta:
LC fiber ntau connector
Cov khoom ntev tuaj yeem kho tau
Multi-mode thiab ib hom kev xaiv
Zoo repeatability thiab sib pauv.
Cov yam ntxwv kho qhov muag ua tau raws li IEC TIA / EIA thiab lwm yam qauv
Patch qaum pigtail xaiv ceramic insert, kev sib tsoo tshuab, fiber ntau lub ntsej muag kom ua tiav qhov tseeb docking
RoHS 2.0 Ua raws
Specifications:
|
Parameter |
Chav tsev |
Tus nqi |
|||
|
Cable Diameter (yeem) |
mm |
0.90,1.6,2.0,3.0 |
|||
|
Cable Jacket Khoom (yeem) |
- |
PA, PVC, PU, LSZH |
|||
|
Fiber hom |
- |
Qauv: G652, G657 |
MM: OM1, OM2, OM3, OM4, OM5 |
||
|
Lub wavelength |
nm |
1310/1550 |
850/1300 |
||
|
Endface polishing |
- |
UPC |
APC |
UPC |
|
|
Insertion Loss (IL) |
dB |
Tsawg dua lossis sib npaug rau 0.30 |
Tsawg dua lossis sib npaug rau 0.25 |
||
|
Rov Los Loss (RL) |
dB |
Ntau tshaj los yog sib npaug rau 50 |
Ntau tshaj los yog sib npaug rau 60 |
Ntau tshaj los yog sib npaug rau 20 |
|
|
Endface Geometric Parameters (3D) |
Radius ntawm Curvature |
mm |
Txaus siab rau IEC TIA / EIA cov qauv |
||
|
Apex Offset |
μm |
||||
|
Fiber Spherical Qhov siab |
nm |
||||
|
Angular yuam kev |
degree |
||||
|
Durability |
sij hawm |
1000 |
|||
|
Ua haujlwm kub |
degree |
-20 ~ +80 |
|||
|
Cia Kub |
degree |
-15 ~ +60 |
|||
Tus khub
FAQ
Ntim

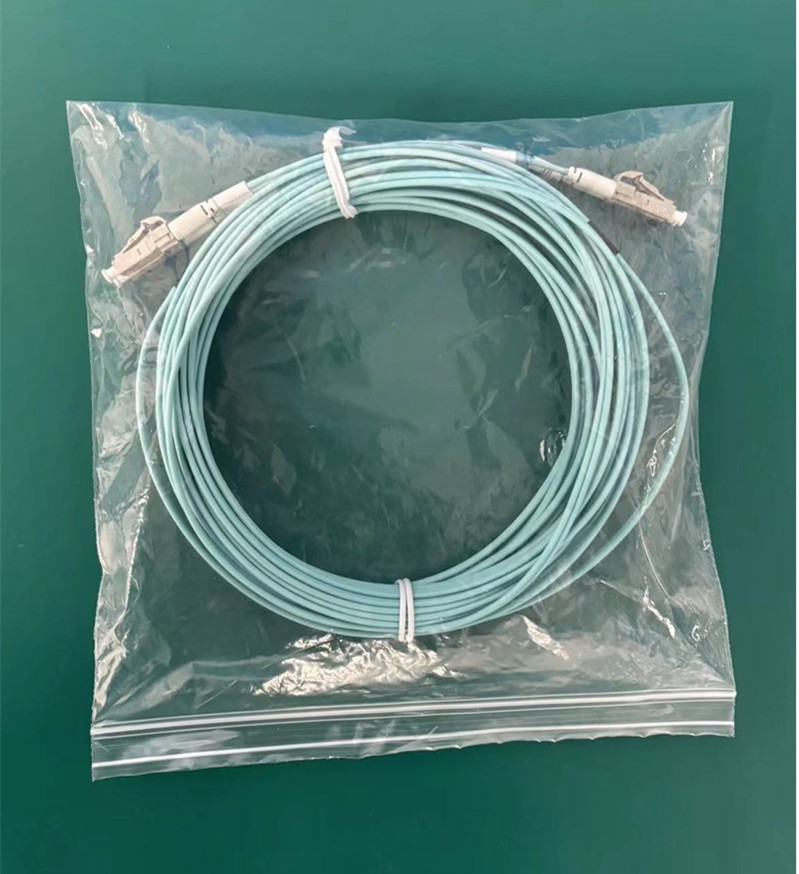

Tom qab tag nrho cov kev ntsuam xyuas tiav, cov fiber optic jumpers yuav raug ntim raws li cov neeg siv khoom xav tau. Feem ntau, peb yuav siv lub hnab PE los ntim cov jumper cables ntawm cov ntu me me, thiab muab tso rau hauv ib lub thawv me me; kom ntseeg tau tias muaj kev nyab xeeb, peb yuav siv cov ntawv spool los ntim cov meter loj, thiab thaum kawg ob qho tib si yuav tau ntim rau hauv thawv dua.
