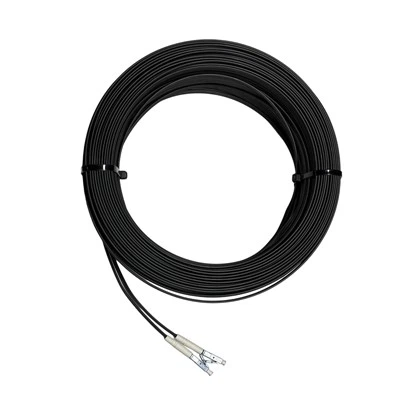

FTTH Patch Cord LC pigtail
FTTH thaj qaum LC pigtail yog ib qho tseem ceeb ntawm Fiber rau lub Tsev (FTTH) network. Nws yog siv los txuas cov khoom siv xws li Optical Network Units (ONUs), Optical Network Terminals (ONTs) thiab Optical Line Terminals (OLTs) rau fiber ntau optic network. Tsim thiab sim ua kom tau raws li ICE, ISO, thiab ROHS cov qauv kev lag luam, HTGD muaj nyob rau hauv OM1, OM2, OM3, OM4, OM5, OS1 thiab OS2 fiber ntau hom, nrog LC connectors, thiab nyob rau hauv ntau yam cable diameters thiab cov ntaub ntawv. FTTH thaj qaum LC pigtail yog tsim los muab kev ua haujlwm siab, kev ntseeg tau thiab yoog raws. Nws cov me me, high-density LC connectors haum rau hauv qhov chaw txwv, thaum kev lag luam-tus qauv tsim ua kom muaj kev sib kis tau zoo ntawm cov teeb liab kho qhov muag. FTTH thaj qaum LC pigtail, yog ib qho tseem ceeb hauv kev tsim kev kub ceev, txhim khu kev qha fiber ntau optic.
Daim ntawv thov:
Data center
Sab hauv tsev fiber ntau optic cable system
Fiber optic nkag box
Nta:
Drop-down design
Kev siv sab hauv
Cov khoom siv kho qhov muag zoo
Cov yam ntxwv kho qhov muag ua tau raws li IEC TIA / EIA thiab lwm yam qauv
RoHS 2.0 Ua raws
Specifications:
|
Parameter |
Chav tsev |
Tus nqi |
|||
|
Cable Diameter (yeem) |
mm |
2.0*5.0,2.0*5.2,2.0*3.0,2.0*6.1... |
|||
|
Cable Jacket Khoom (yeem) |
- |
LSZH |
|||
|
Fiber hom |
- |
Qauv: G652, G657 |
MM: OM1, OM2, OM3, OM4, OM5 |
||
|
Lub wavelength |
nm |
1310/1550 |
850/1300 |
||
|
Endface polishing |
- |
UPC |
APC |
UPC |
|
|
Insertion Loss (IL) |
dB |
Tsawg dua lossis sib npaug rau 0.30 |
Tsawg dua lossis sib npaug rau 0.25 |
||
|
Rov Los Loss (RL) |
dB |
Ntau dua lossis sib npaug li 50 |
Ntau tshaj los yog sib npaug rau 60 |
Ntau dua lossis sib npaug li 20 |
|
|
Endface Geometric Parameters (3D) |
Radius ntawm Curvature |
mm |
Txaus siab rau IEC TIA / EIA cov qauv |
||
|
Apex Offset |
μm |
||||
|
Fiber Spherical Qhov siab |
nm |
||||
|
Angular yuam kev |
degree |
||||
|
Durability |
sij hawm |
1000 |
|||
|
Ua haujlwm kub |
degree |
-20 ~ +80 |
|||
|
Cia Kub |
degree |
-15 ~ +60 |
|||
Ntim
Tom qab tag nrho cov kev ntsuam xyuas tiav, FTTH optical fiber nco cable yuav raug ntim raws li cov neeg siv khoom xav tau. Feem ntau, peb qhwv cov FTTH optical fiber nco cables nrog PE zaj duab xis thiab tom qab ntawd ntim lawv rau hauv thawv kom muaj kev nyab xeeb.
FAQ
Q: Dab tsi yog cov khoom tseem ceeb uas koj tsim?
Q: Koj puas tuaj yeem tsim OEM xaj?
Q: Puas yog qhov zoo ntawm cov khoom xaj yuav zoo ib yam rau cov qauv uas kuv tau lees paub?
Hengtong Group, nrog nws cov kev paub dhau los thiab thoob ntiaj teb muaj nyob hauv kev lag luam fiber ntau, muaj ntau yam zoo FTTH Patch Cord LC Pigtail cov kev daws teeb meem kom tau raws li kev xav tau ntau yam thiab ib puag ncig. Yog tias koj xav paub ntau ntxiv txog peb cov khoom siv FTTH Patch Cord LC Pigtail lossis xav tau kev pabcuam hauv kev xaiv cov kev daws teeb meem zoo rau koj qhov project, peb caw koj los tiv tauj nrog peb pab pawg kws tshaj lij. Tiv tauj peb ntawm jenny@htgd.com.cnlos yog hu rau +8615711010061 los tham txog yuav ua li cas peb tuaj yeem pab koj ua tiav kev sib txuas zoo rau koj lub network infrastructure.
